MTC-CN
MTC
8447901100

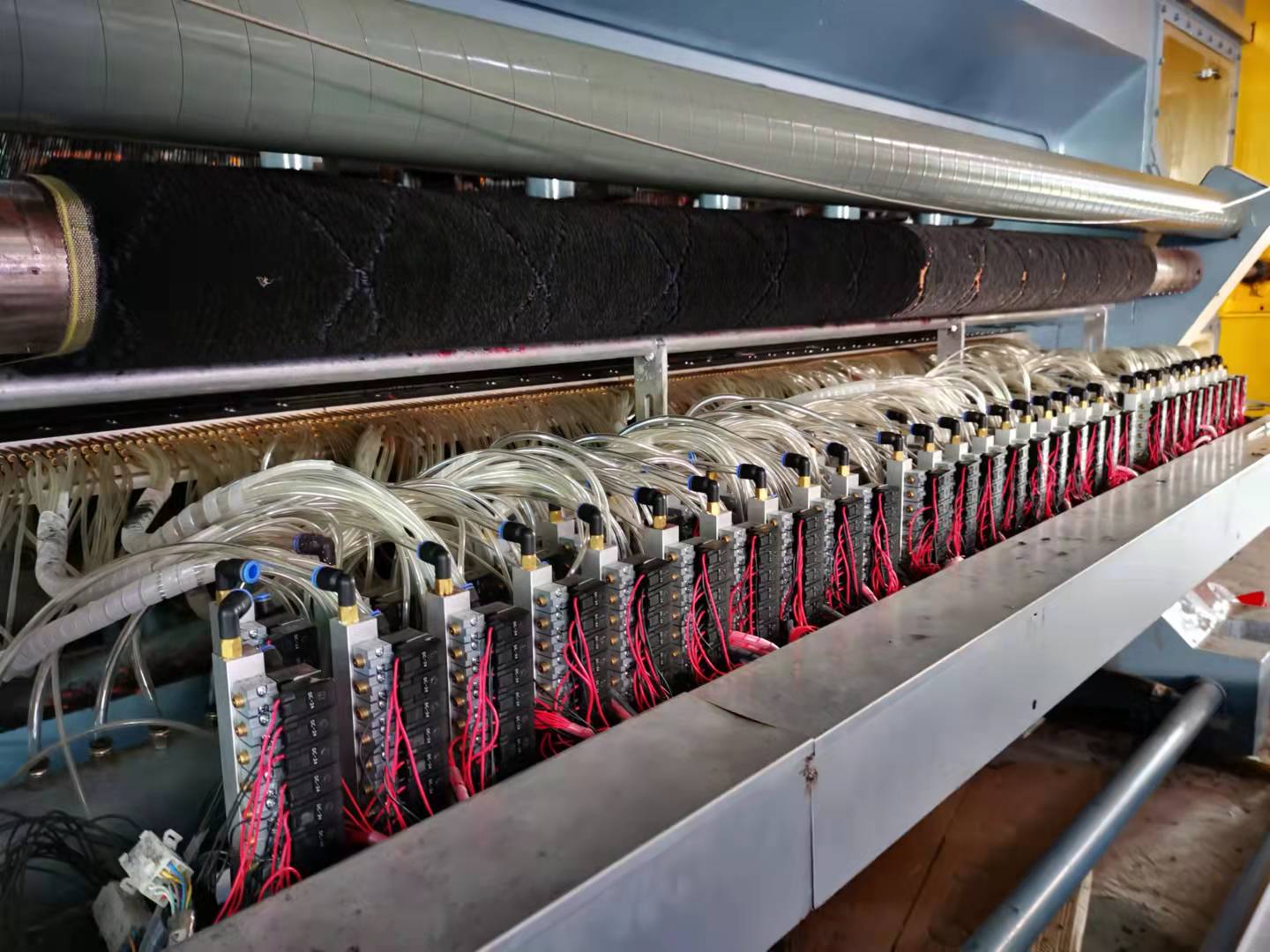

MTC-CN tufting machine
with double servo sliding needlebar
with mending frame and winding
with 2*1060 ends creel, including 8mm inside tube(8-10)
135 days after payment received,condition FOB shanghai
Model:（MTC-CN, 6+6 FRS multi-loop pile）
The body Frame is partly cast frame,Main mechanical drive part all made of NSK and IKO bearings of Japan brand, adopts 45# steel modulation polishing shaft
Main Motor : Seimens China
Working width: 2.1m
Gauage:1/6"GG+1/6"GG FRS multi-loop
Variable frequency adjustable motor
Automation adjustable bed plate and locking system
Adjustable stroke
Weight: About 11tons
Total Power: 45KW, 380VAC 3Phase 50Hz
Pile Height:3-9mm
Stitch: 20-60 stitch per 10cm (pur customers requests)
Speed: 600-1200 RPM
(Shifting on 600-800RPM，Straight 800-1200RPM)
Machine Dimension（without creel）：2400(D)x6800(W)x3000(H)
Include 1 set of Double servo backing control system, easy to adjust stitch by software
Include 2*500 servo motors for yarn feeding system for front and rear side, one yarn one scroll
2 set of servo sliding bar and 2 set of pullers servo drive
Start control cabinet, soft start/stop, High Parking, Fault indication, meter counter, Configure front pull switch, front photoelectric switch
2pc of Yarn collecting plate
Include one full set for 2.1m needle, hook,and fork
One set of Jacquard control cabinet and software
